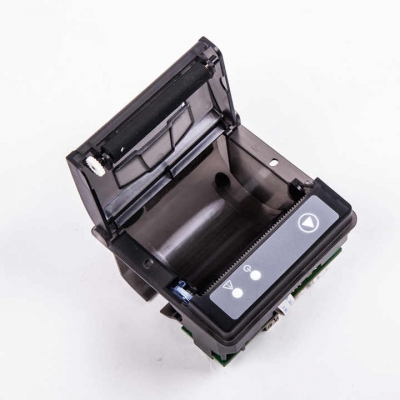

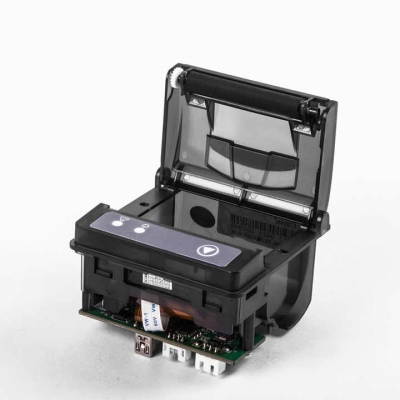

Musktool- Cheap A1X Mini Thermal Panel Printer 58mm embedded thermal receipt printer module TTLRS232
Product Specification
·Low noise thermal printing |
·Easy paper loading |
·Front panel make paper replacement easily |
·Variious images/curve/characters printing function |
·Support TTL/RS232 communication |
·Easy to intergrate into other equiment and devices |
Technical parameters
Item | A1X(2inch) |
Printing method | Thermal printing |
Resolution | 203DPI, 8 dots/mm |
Paper width | 57.5±0.5mm |
Printing width | 48mm |
Interfaces | RS232+TTL/TTL |
Paper tore | Manual |
Command set | ESC/POS compatible commands |
Print Font | ASCII Font A: 12×24/ASCII Font B: 9×24/Chinese: 24×24 |
Graphics printing | Support dots printing with different densities, raster bitmap print and downloaded bit image print |
Code pages | Support Chinese, English, Japanese and other 45 kinds of international character sets |
UTF-8 | Support |
Bar codes | UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE |
External dimension | 77mm×77mm×49mm(L×W×H) |
Opening dimension | 73.5mm×74mm(L×W) |
Paper roll diameter | 40mm(Max) |
TPH life | 50km |
Power Supply | 12V/5-9V |
