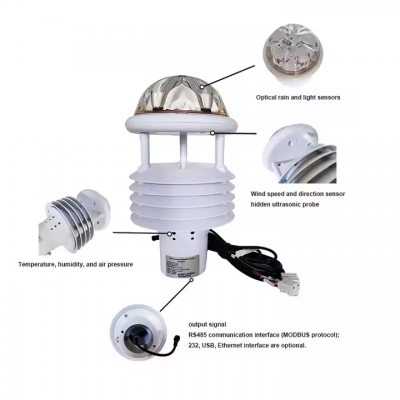

Musktool-Cheap Integrated Smart Sensor Ultrasonic Hidden Probe Wind Speed/Direction IR rainfall Weather Station with Lorawan Collector

Main Feature :
Serial No. : Lisa0838

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Cheap Integrated Smart Sensor Ultrasonic Hidden Probe Wind Speed/Direction IR rainfall Weather Station with Lorawan Collector

Product descriptions

Parameters name	Wind speed direction lR rainfall sensor
Parameters	Measure range	Resolution	Accurancy
Wind speed	0-70m/s	0.01m/s	±0.1m/s
Wind direction	0-360°	1°	±2°
Air humidity	0-100%RH	0.1%RH	± 3%RH
Air temperature	-40~60℃	0.01℃	±0.3℃
Air pressure	300-1100hpa	0.1 hPa	±0.25%
Optical rainfall	0-4mm/min	0.01 mm	≤±4%
Illuminance	0-20W LUX		5%
*Other parameters can be customized: light, global radiation, UV sensor, etc.
Technical parameter
Operating Voltage	DC12V
Sensor power consumption	0.12W
Current	10ma@DC12V

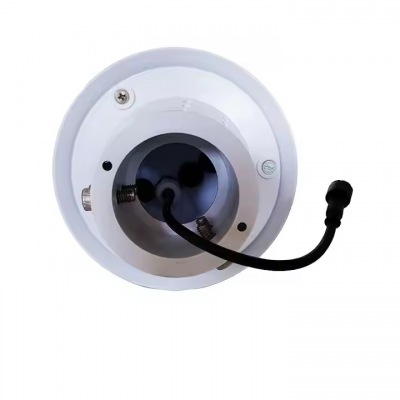

Output signal	RS485, MODBUS communication protocol
Working environment	-40～85℃ , 0~100%RH
Material	ABS
Protection level	IP65

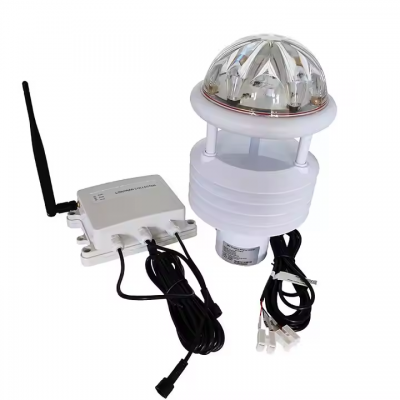

Wireless transmission
Wireless transmission	LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI
Cloud Server and Software introduce
Cloud server	Our cloud server is bind up with the wireless module
Software function	1. See real time data in the PC end
	2. Download the history data in excel type
	3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket

Lable: Cheap Ultrasonic
