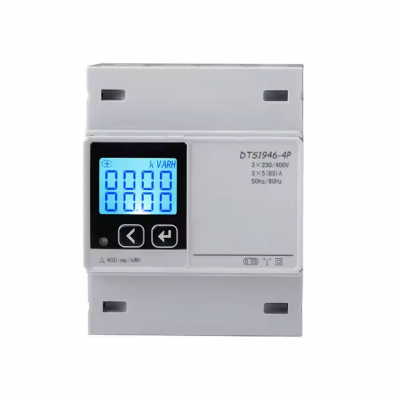

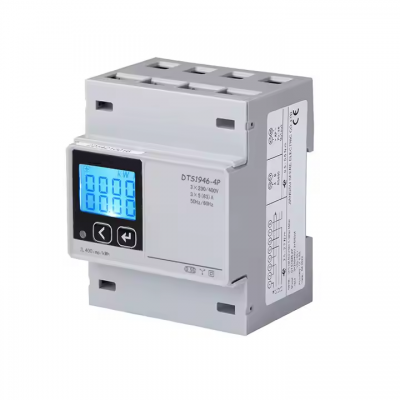

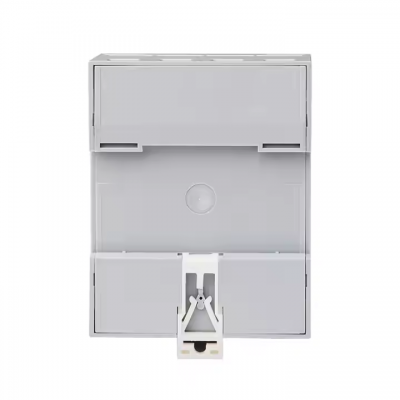

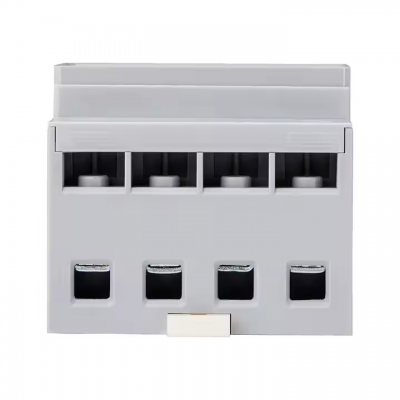

Musktool-DTS1946-4P Elecnova 3 Phase 4 Wire LCD Energy Meter CT Connection 3 Phase AC Energy Meter Din Rail Power Consumption Monitoring Meter

Main Feature :
Serial No. : monica0700

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-DTS1946-4P Elecnova 3 Phase 4 Wire LCD Energy Meter CT Connection 3 Phase AC Energy Meter Din Rail Power Consumption Monitoring Meter

Product Introduction

Elecnova 3 phase 4 wire LCD energy meter CT Connection 3 Phase AC Energy Meter Din Rail Power Consumption Monitoring Meter

The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital
sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is
convenient to install and reliable in operation.

Technical Parameter

Model		DDS/DSS/DTS1946 Series
Normal Voltage		230V, 3400V, 3230/400V
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct Input	0.004lb
Start Current	Via CT Input	0.01ln
Consumption		<4VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU/MBUS protocol
IP Degree		Front: IP51
Operating Temperature		-25℃~55℃
Relative Humidity		≤93%

Lable: DTS1946-4P CT Connection 3 Phase AC Energy Meter
