Musktool-LORA LORAWAN WIFI 4G SERVER SOFTWARE RS485 MODBUS AGRO METEO WEATHER MONITORING STATION WITH OUTDOOR SENSOR WIRELESS for FARMING

2025-07-03 15:14:28

Main Feature :
Serial No. : Lisa0834

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool LORA LORAWAN WIFI 4G SERVER SOFTWARE RS485 MODBUS AGRO METEO WEATHER MONITORING STATION WITH OUTDOOR SENSOR WIRELESS for FARMING

Product descriptions

Measurement parameters

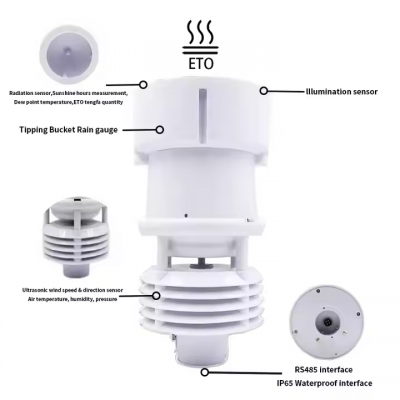

Parameters Name	11 in 1: Ultrasonic wind speed ,wind direction,air temperature, air relative humidity, atmospheric pressure,Illumination,tipping bucket rainfall,radiation, sunshine hours measurement, Dew point temperature, ET0Tengfa quantity
Parameters	Measure range	Resolution	Accurancy
Wind speed	0-40m/s	0.1m/s	±(0.5+0.05v)m/s
Wind direction	0-359.9°	0.1°	±5°
Air temperature	-40-60℃	0.1℃	±0.3℃（25℃）
Air relative humidity	0-100%RH	0.1%	±3%RH
Atmospheric pressure	300-1100hpa	0.1hpa	±0.3hPa
Illumination	0-200Klux	10lux	±3%/1%F.S
Rainfall	≤4mm/min	0.2mm	±0.4mm(R≤10mm)±4%（R＞10mm）
☆Sunshine hours	0-24h	0.1h	5%
☆Dew point temperature	0-40℃	0.1℃	≤0.5℃（0℃-30℃ 40%RH~100%RH）＞1℃（＜0℃，＜40%RH）
☆ET value	0-80mm/d	0.1mm/d	±25%
☆Radiate	0-2000W/M2	1W/M2	<±5% (600w/m2~1000w/m2, with EKO&MS802 (Level A) Comparison)
* Other customizable parameters	☆Represents optional parameters; Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3
Monitoring principle	Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor
	Illumination: German ROHM digital photosensitive chip
	Rainfall: Tipping bucket rain gauge
Technical parameter
Stability	Less than 1% during the life of the sensor
Response time	Less than 10 seconds
Warm-up time	30S (SO2 \ NO2 \ CO \ O3 12 hours)
Supply voltage	12-24VDC
Working current	DC12V≤60ma (HCD6815) -DC12V≤180ma
Power consumption	DC12V≤0.72W (HCD6815); DC12V≤2.16W
Life time	In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed), life is not less than 3 years
Output	RS485, MODBUS communication protocol
Housing material	ASA engineering plastics
Working environment	Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions	-40 ~ 60 ℃
Standard cable length	3 meters
The farthest lead length	RS485 1000 meters
Protection level	IP65
Electronic compass	Optional
GPS	Optional
Wireless transmission
Wireless transmission	LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI

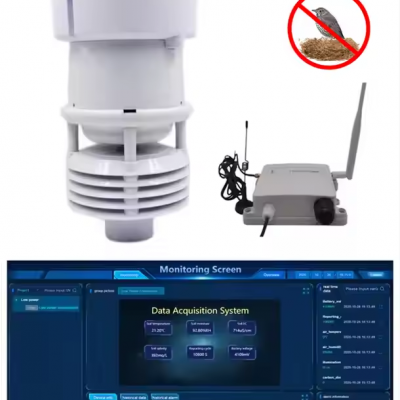

Cloud Server and Software introduce
Cloud server	Our cloud server is bind up with the wireless module
Software function	1. See real time data in the PC end
	2. Download the history data in excel type
	3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
Mounting Accessories
Stand pole	1.5 meters, 1.8 meters ,3 meters higth, the other higth can be customize
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to burried in the ground
Lightning rod	Optional(Used in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
Surveillance cameras	Optional
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket
