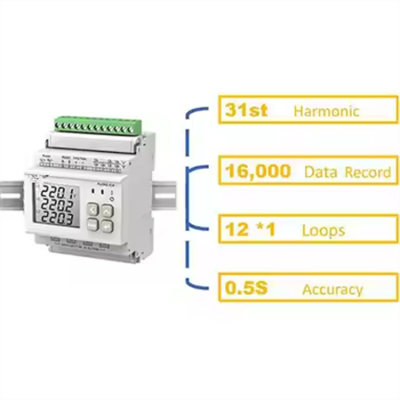

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

2025-07-01 09:41:09

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

Main Feature :
Serial No. : monica0696

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-PD194Z-E24E IOT Electricity Meter RS485 kwh Multi Channel Energy Meter Easy Installation RJ12 Din Rail Power Meter

Technical Parameter

Accuracy	V/A	0.20%
	P/Q/S/PF	0.50%
	F	±0.01 Hz
	土kWh	Class O.5S
	±kvarh	Class 2
Voltage Input	Rated value	3x220V/380V
	Overload	Continuous: 1.2Vn Instantaneous: 2Vn/10s
	Burden	0.1 VA (per phase)
	Impedance	21.7MQ
	Frequency	45Hz〜65Hz
Current Input	Rated value	External CT
	Overload	Continuous: 1.2ln Instantaneous: 2ln/5s
	Burden	<0.2VA (per phase)
	Impedance	<20mC
Residual Current Input		AC 1mA
Auxiliary Power Supply	Working range	AC/DC 80〜270V
Auxiliary Power Supply	Consumption	<5VA
Communication Port	Default	RS485, Modbus-RTU, up to 9600bps
	LoRa, EC2 module	470MHz
	GPRS.EC4 module	850/900/1800/1900MHZ
	N^oT, EC6 module	Band3/5/8
Energy Pulse Output		1 photocoupler output, pulse width (80±20%) ms

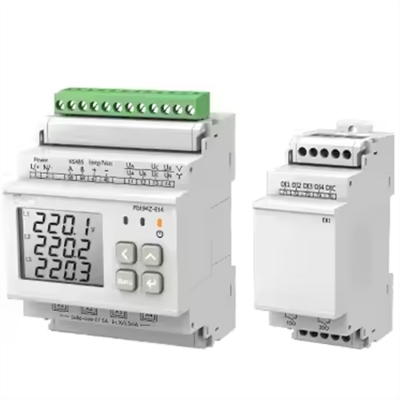

Optional Module (EK1)	Digital inputs	Dry digital inputs, Isolation: 22kVAC
Optional Module (EK1)	Relay outputs	Contact rated at AC 250V/5A or DC 30V/5A
Environment Conditions	Operating temperature	-25C 〜70 C
	Storage temperature	-30C~80C
	Relative humidity	M93%
	Altitude	<2500m

Lable: PD194Z-E24E RJ12 Din Rail Power Meter
