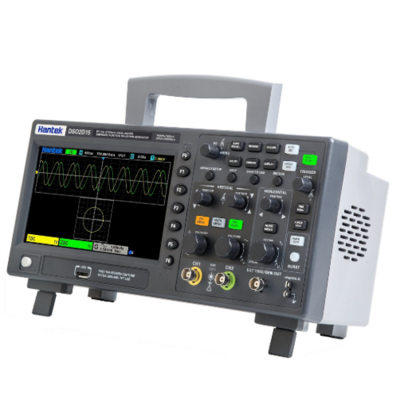

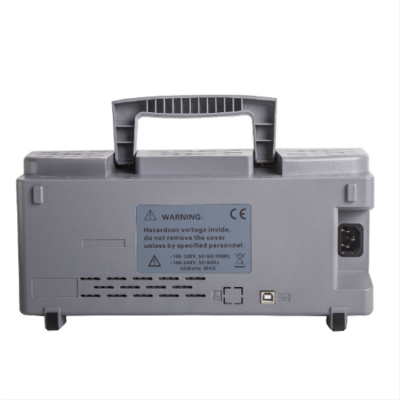

Musktool-oscilloscope DSO2000 Series
Feature:
1) 2 channels which are respectively controlled by independent knobs |
2) 100 MHZ and 150MHZ analog channel bandwidth |
3) Sampling rate up to 1 GSa/s |
4) 8M memory depth |
5) Vertical range 2mV/div ~ 10V/div |
6) Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15) |
7) Vertical resolution: 8bit |
8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC |
9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN |
| 10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures |
11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator |
12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. |
13) 2 sets of digital voltmeters |
14) Support threshold testing, free measurements within the screen |
15) Abundant SCPI remote command control |
| 16) USB Host/Device. |
![图片关键词]( "图片关键词")
Model

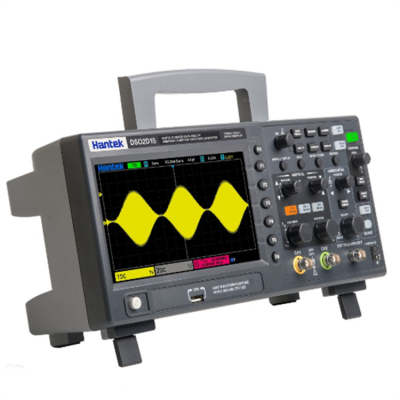

1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output

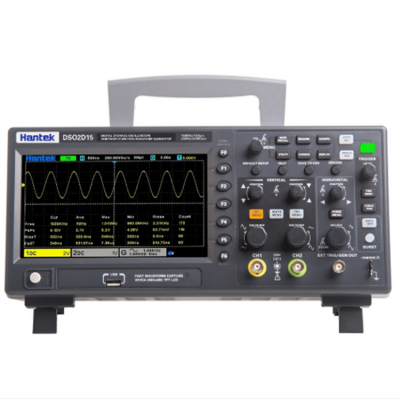

32 kinds of auto measurements with statistics
