Musktool-A-2546B Solar Photovoltaic Crimping Pliers Multifunctional Wire Stripping and Crimping Pliers Connection and Crimping Tool Set
Features
Multifunctional Integrated Design for Photovoltaic Applications Specifically designed for solar photovoltaic systems, it integrates the functions of MC4 connector crimping, double-insulated cable stripping, and cutting, meeting the operational needs of the entire photovoltaic installation process. The kit includes the main body of the crimping pliers and a solar terminal tightening wrench, enabling the application of "one tool for multiple scenarios". Labor-saving and Efficient Mechanical Structure Designed based on the new lever principle, although it has a compact structure (270mm in length), it can significantly reduce the operating force during crimping, especially suitable for crimping operations of wires with a larger cross-section of 2.5 - 6mm². The precise ratchet mechanism, combined with the self-release locking device, ensures that each crimping completes a full cycle, avoiding the risk of loose connections. Durable Engineering Design The key components are specially hardened, and the blades are made of stainless steel, featuring high wear resistance and corrosion resistance. The handle is made of a composite material of PP and TPR, which is non-slip and ergonomic, making it less likely to cause fatigue during long-term operation. The optimized center of gravity balance improves operational stability. Precise Operation Control System Equipped with an adjustable positioner / length stopper, it can accurately control the stripping length, suitable for photovoltaic-specific double-insulated cables with a cross-section of 0.69 - 6.0mm². The quick-release lever design allows the jaws to be opened at any position, effectively handling misoperations or terminal defect issues. |
Product Description
Parameter items | Specification data |
Model | A-2546B |
Crimping range | 2.5/4.0/6.0mm²（Corresponding to 14 - 10 AWG） |
Wire stripping range | 0.69-6.0mm²（Dedicated for double-insulated cables） |
Main body length | the largest 30mm |
Body length | 270mm |
Net weight | 0.73-0.75kg |
Applicable terminal types | MC4 photovoltaic connector male and female terminals |
Core materials | Carbon steel (hardening treatment for key components) |
Handle material | PP+TPR composite insulating material |

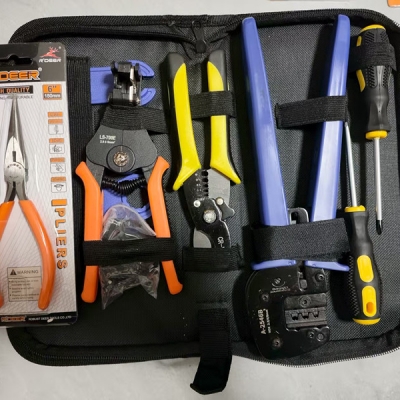

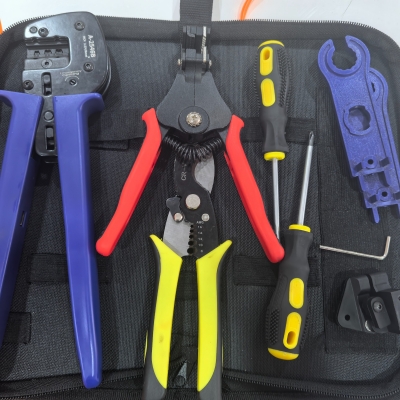

Packaging configuration | 1 pair of wire crimpers + 1 pair of solar wrenches |
Application scenarios | Non - welded electrical connections for photovoltaic systems |
