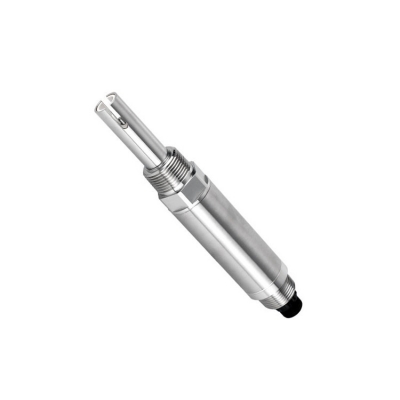

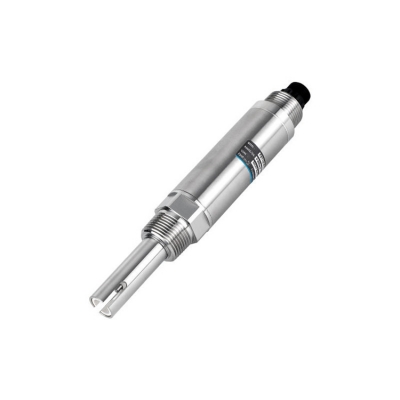

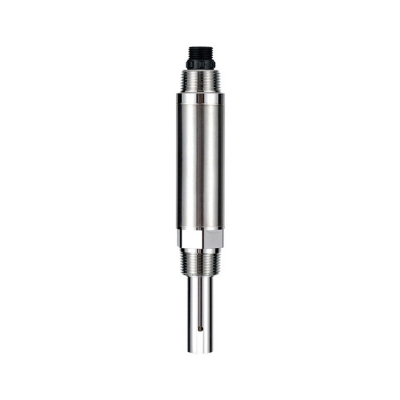

Musktool-FST100-EC106 Low Cost Water Conductivity EC Sensor RS485 4-20 MA Water Conductivity Probe
【Product Description】
FST100-EC106 Smart conductivity sensors can be used for environmental water quality monitoring, chemical reaction processes, and industrial production processes, and can meet the requirements of most industrial applications for online conductivity measurement. |
【Features】
◇ Universal RS485 interface, Modbus/RTU protocol. ◇ Conveniently connected to third-party equipment such as industrial control computers, general controllers, recording instruments, PLCs, DCS, etc. ◇ Dual high-impedance differential amplifiers, strong anti-interference and fast response. ◇ 3/4 NPT pipe threads are easy to install, convenient for submerged installation or installation in pipes and tanks. ◇ Protection level IP68 |
【Technical Parameters】
| Range | 0-2000uS/cm, 0-20mS/cm, 0-200mS/cm |
| Resolution | 0.1/0.01/0.001 |
| Accuracy | 1.5%FS, ±0.3℃ |
| Operating temperature | 0~50℃ |
| Operating pressure | ＜0.6MPa |
| Temperature compensation | Automatic temperature compensation (Pt1000 |
| Power supply | 12~24VDC |
| Signal output | RS-485(Modbus/RTU)/4-20mA |
| Casing material | Stainless steel |
| Installation method | Immersion installation, 3/4 NPT pipe thread |
| Calibration method | Two-point calibration/multi-point calibration |
| Power consumption | 0.2W@12V |
| Protection level | IP68 |
