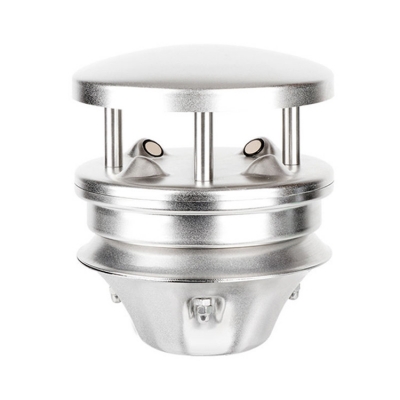

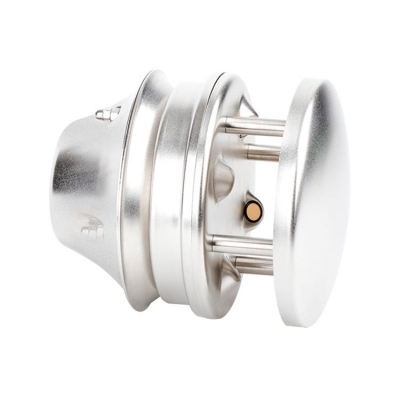

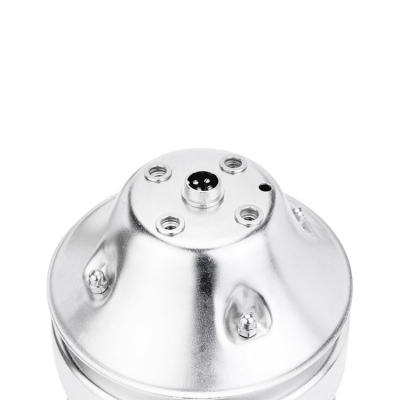

Musktool-FST200-204A Auto Heated Multi Function Digital Smart Wind Meter Anemometer Vane Ultrasonic Wind Speed and Direction Sensor
【Product description】

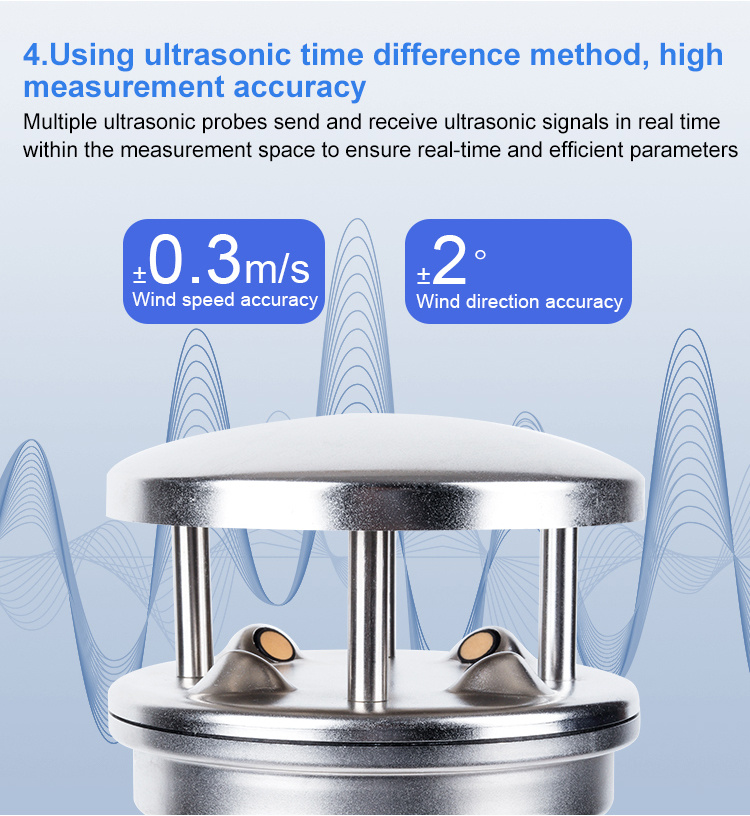

| FST200-204A heating ultrasonic wind speed and direction sensor uses the ultrasonic time difference method to measure the wind speed and direction. Featured with high measurement accuracy, reliable performance, easy to carry, no moving parts, no maintenance and on-site calibration, is a more advanced instrument for measuring wind speed and direction. |
【Technical Parameters】
| Wind Speed Parameters | |
| Measuring range | 0~60 m/s |
| Starting wind speed | 0.1m/s |
| Response time | 1s |
| Resolution | 0.1m/s |
| Accuracy | ±0.3m/s or ±3% (0-30m/s, whichever is greater) ±5% (30-60m/s) |
| Wind Direction Parameter | |
| Measuring range | 0-360° |
| Starting wind speed | 0.1m/s |
| Accuracy | ±2° |
| Resolution | 0.1° |
| Heating current | 0.6~1A |
| Power consumption | 15~25W |
| Temperature control interval | -30~60°C |
| Power supply | 5V 12V 24V DC for optional |
| Digital output signal | RS485 4-20mA 0-5V |
| Baud rate | 9600, 19200, 38400, etc |
| Power supply | 9 ~ 24VDC |
| Average current | <35mA (12VDC) |
| Operating temperature range | -30~60°C |
| Operating humidity range | 0~99%RH |
| IP Grade | IP66 |

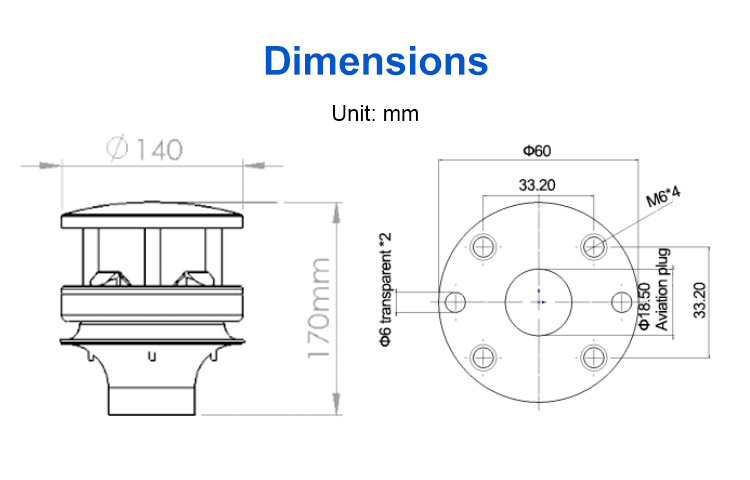

【External structure】
【Scope of application】
| ♦ Urban environmental monitoring, civil markets ♦ Wind power, meteorological monitoring ♦ Ship navigation and drilling platforms ♦ High-speed rail road networks ♦ Aviation airport environmental monitoring ♦ Subways, tunnels and mining |
【Detailed description】
【1. Product details】
