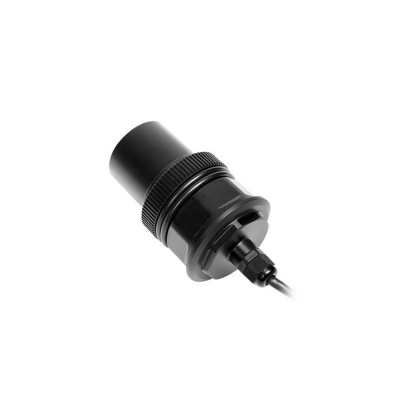

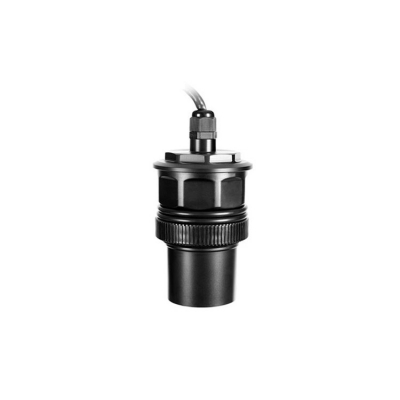

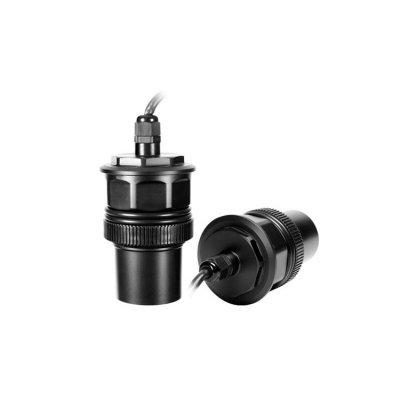

Musktool-FST700-CS03 RS485 Ultrasonic Water Level Sensor Noncontact Water Level Sensor
【Product description】
| FST 700-CS03 ultrasonic liquid level sensor is an integrated measuring instrument consisting of a sensor and a built-in intelligent circuit control system. It is an instrument that measures the distance from a surface to the surface of liquids and objects. Liquid level gauges are easy to install and maintain, and are widely used in non-contact distance measurement to reliably measure the surface position of clean water, sewage, glue, mud or channel flow, etc. |
【Technical Parameters】
Supply voltage 12~30VDC Output signal RS485 (ModbusRTU communication protocol), RS485+4-20mA Working current 30mA@12V DC Power consumption <0.25W Range 0~5...10m Precision 0.3%~1%FS Response time ≤1s Blind spot ≤40cm Operating temperature -20-60℃ Line length 2m Working frequency 40KHZ±5% Work pressure ≤0.3MPa Degree of protection IP67
【Scope of application】
● Sewage and industrial water level measurement ● River and well level measurement ● Corrosive level measurement |
