Musktool-Handheld Clamp Meter Multimeters Testo 770-3 Digital AC DC Current Clamp Meter With Testo Smart App

2025-07-04 15:31:54

Musktool-Handheld Clamp Meter Multimeters Testo 770-3 Digital AC DC Current Clamp Meter With Testo Smart App

Main Feature : Musktool-Handheld Clamp Meter Multimeters Testo 770-3 Digital AC DC Current Clamp Meter With Testo Smart App
Serial No. : Owen0017

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Handheld Clamp Meter Multimeters Testo 770-3 Digital AC DC Current Clamp Meter With Testo Smart App

Product Description

testo 770-3 - Clamp meter with bluetooth (0590 7703)
Temperature - TC Type K (NiCr-Ni)
Measuring range	-20 to +500 °C
Resolution	±1 °C (0 to +100 °C)
Accuracy	0.2 °C
DC voltage
Measuring range	1.0 to 600.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digits)
AC voltage
Measuring range	1.0 mV to 600.0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)
DC current
Measuring range	0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)
AC Current
Measuring range	0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 A (clamp) 0.1 μA (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)
Resistance
Resolution	max. 0.01 Ohm
Measuring range	0.01 to 60.0 MOhm
Accuracy	± (1.5 % of mv + 3 Digits)
Capacitance
Resolution	max. 0.01 nF
Measuring range	2 nF to 60.00 mF
Accuracy	± (1.5 % of mv + 5 Digit)
Frequency
Resolution	max. 0.1 Hz
Measuring range	0.01 Hz to 9999 kHz
Accuracy	± (1 % of mv + 1 Digit)
Active Power
Measuring range	0.1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0.1 W
Reactive Power
Measuring range	0.1 to 600.0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.1 var
Apparent Power
Measuring range	0.1 VA to 600.0 kVA
Accuracy	± 1 Digit
Resolution	0.1 VA
Direct current DC Voltage
Measuring range	0.1 W to 600.0 kW
Accuracy	± 1 Digit
Resolution	max. 0.1 W
Power Factor
Measuring range	-1.00 to +1.00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.01
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Function	Diode, Continuity, MinMax, Data hold, temperature, True RMS, Duty cycle, auto range, μA current measuring,Power Measurement, bluetooth

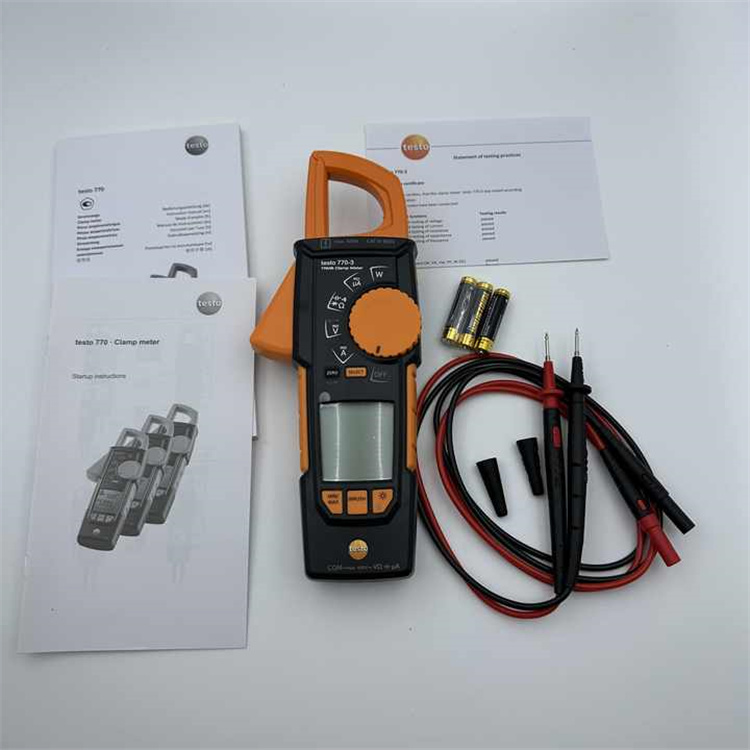

Delivery scope	testo 770-3 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), instruction manual.
