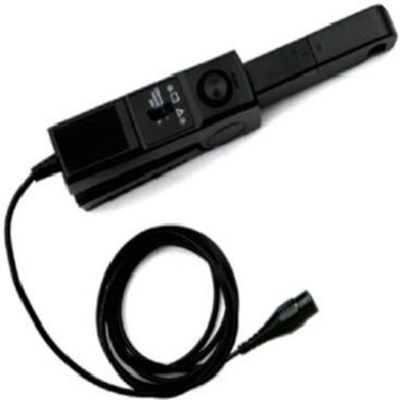

Musktool-A622 current probe 100A peak 100KHz
INTRODUCTION
| In the field of low - frequency and high - current measurement, the dynamic response and signal fidelity capabilities of current probes are the keys to unlocking energy efficiency analysis and fault diagnosis of industrial equipment. The A622 current probe, with its precise combination of a 100A peak measurement capability and a 100KHz wide - band coverage, has become a professional tool for testing medium - and low - frequency current signals. |
Technical Specification
Modle | A622 | |
Range | 50mA~10A peak | 1A~100A peak |
Current transfer ratio | 100mV/A | 10mV/A |
Amplitude accuracy | 3%±5mV | 500m - 40Al peak value: 4% ± 500uV; 40 - 100A peak value: At 100A, the maximum is 15% |
BW(-3dB) | DC~100KHz | |
Phase shift | DC~65Hz:<1.5° | DC~65Hz:<1 |
Load impedance | ≥1Mand≤100pF | |
Input impedance | 0.010 | |
Noise | 6mV | 600μV |
Slew rate | 0.3VuS | 20mV/us |
Rise time | 3.5u5 | <3.5us |
Voltage | 600Vrms | |
Battery | 9V | |
Low battery indicator | When the voltage is > 6.5V, the LED is green; otherwise, the light is off. >6.5V, LED Green | |
Overload indicator | Red LED indicator measuring the current is overload,Change the range. | |
