Musktool-YP6100 series current probe

Musktool-YP6100 series current probe

2025-08-11 17:42:15

Musktool-YP6100 series current probe

Main Feature : Musktool-YP6100 series current probe
Serial No. : Owen0319

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

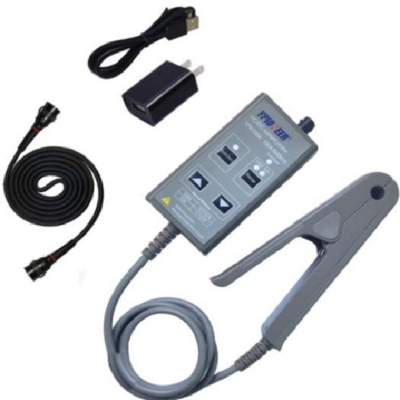

Musktool-YP6100 series current probe

INTRODUCTION

In the field of high-frequency dynamic current measurement, the bandwidth coverage and signal fidelity capabilities of the probe are the core support for unlocking the operating characteristics of complex power systems.

Technical Specification

Model	YP6100A	YP6100B	YP6200A	YP6200B
Gear position	10A:0.1V/A 100A:0.01V/A		20A:0.1V/A 200A:0.01V/A
Measure current range	10A:50mA~10Apk(7.07Arms) 100A:1A~100Apk(70.7Arms)		20A:50mA~20Apk(14.14Arms) 200A:1A~200Apk(141.4Arms)
Typical DC accuracy	±3%:50mA～10A(0.1V/A) ±3%:500mA～40Apk(0.01V/A) ±10%Max:40A～100Apk(0.01V/A)		±3%:50mA～20A(0.1V/A) ±3%:500mA～80Apk(0.01V/A) ±10%Max:80A～200Apk(0.01V/A)
Bandwidth (-3dB)	YP6100A:600kHz		YP6200A:600kHz
	YP6100B:5MHz		YP6100B:5MHz
Rise time	YP6100A≤583ns		YP6200A≤583ns
	YP6100B≤70ns		YP6200B≤70ns
Phase shift	DC～65Hz:<1.5°
Overload indication Function	If the measured current exceeds the range, the buzzer will sound and the overload indicator light will turn on.
Operating voltage RMS	CATII 600V CATIII 300V

Lable: YP6100 ,series current probe
