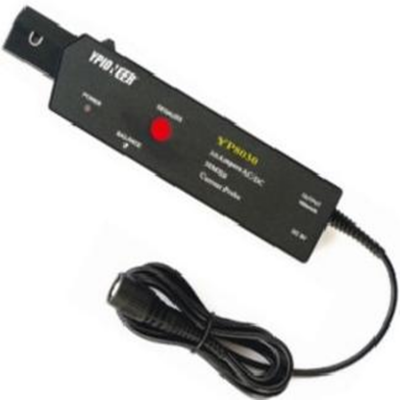

Musktool-YP8030 Current probe 50MHz 30A

Musktool-YP8030 Current probe 50MHz 30A

2025-08-11 17:37:44

Musktool-YP8030 Current probe 50MHz 30A

Main Feature : Musktool-YP8030 Current probe 50MHz 30A
Serial No. : Owen0316

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-YP8030 Current probe 50MHz 30A

INTRODUCTION

In modern electronic measurement technology, the bandwidth coverage and signal processing capabilities of current probes are the keys to unlocking the dynamic characteristics of complex circuits. The YP8030 current probe, with its precise combination of a 50MHz bandwidth and a 30A measurement range, has become a professional tool for testing medium and high-frequency current signals.

Technical Specification

Electrical properties
Model	YP8030
Bandwidth	50MHz
Rise time	7ns
Accuracy	±3%
Current conversion ratio	100mV/A
MAX.current measurement	30A(DC+peak A9
Current conversion ratio	50A(Tp ≤10μs)
Max.measurement of ground voltage	400V(DC+peak A9
Linear degree	±1%
Delay time	20ns±1ns
Power adapter output voltage	DC9V,1000mA
Power adapter input power	AC100~240V,50~60Hz
Mechanical specifications
Max.measuring diameter	4.5mm
Output line length	About 150cm

Lable: YP8030 ,Current probe, 50MHz 30A
