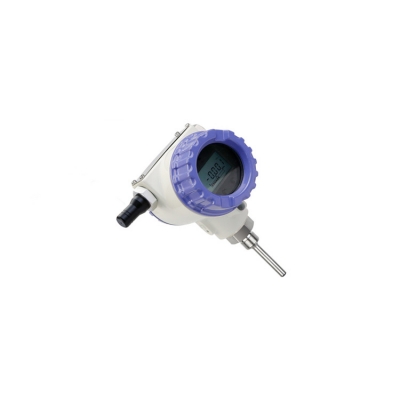

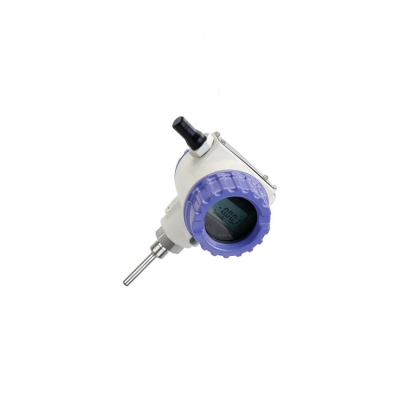

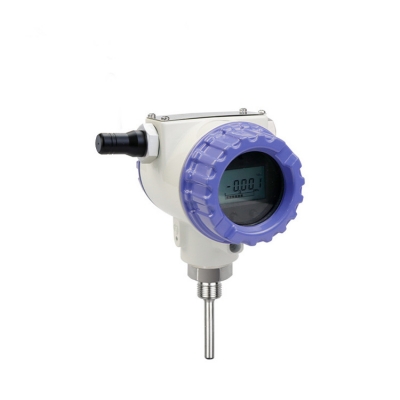

Musktool-FST100-6101LoRa Wireless Temperature Sensor
【Product Description】
FST100-6101 wireless temperature sensor uses high-quality sensitive temperature measurement devices, and is also equipped with ultra-low power microprocessor and high-precision sensor signal conditioning circuit as a whole. It adopts 4G/4G-CAT1/LoRa/NB-IoT communication network to realize on-site Wireless transmission of monitoring data to the cloud. Customers can obtain measurement data by logging in to the relevant website through the Internet PC or mobile terminal, and realize the statistics and analysis of the collected data, and form reports and data curves, which are intuitive, accurate and efficient. This product is mainly used in water supply pipe network, gas supply pipe network, oil supply pipe network, environment, medical and health, manufacturing, chemical industry, energy, meteorology, storage, cold storage, freezer and high-voltage power transmission temperature monitoring and other fields.
【Technical Parameters】
Measuring range
-50~400℃, LCD display (optional), measuring range> 120℃, using isolated type
Transfer method
4G/4G-CAT1/LoRa/NB-IoT,LoRa Working frequency band: 470MHz/868MHz
Protocol
MQTT protocol:4G/NB-IoT;LWM2M protocol:NB-IoT;LoRaWAN protocol: LoRa (Class A, OTAA mode activation)
Power supply
3.6V battery power supply or 12~30VDC external power supply
Power consumption current
4G/NB-IoT Sleep current:≤20uA Sampling current:≤5mA(Lasts 1s) Communication average current:≤60mA(Lasts 15s) Online current:≤10mA(Lasts 60s)
LoRaWAN Sleep current is less than 20uA Sampling current is less than 5mA Sending current is less than 140mA Receiving current is less than 20mA
Upload frequency
5-1440 minutes can be set
Precision
±0.5%FS、1%FS
Battery capacity
8000mAh
Withstand voltage
Typical:40bar(Max:300bar)
Ambient temperature
-20~60℃,0%~80%RH
Protection level
IP65
Material
304, aluminum die casting
Installation interface
M20*1.5 G1/4 (others need to be customized)
Sampling frequency
10-3600s can be set, 10s~12h can be set (default 10s)
Transmission distance
Depending on signal strength LoRaWAN Open environment:2000Meter City environment:1000Meter
