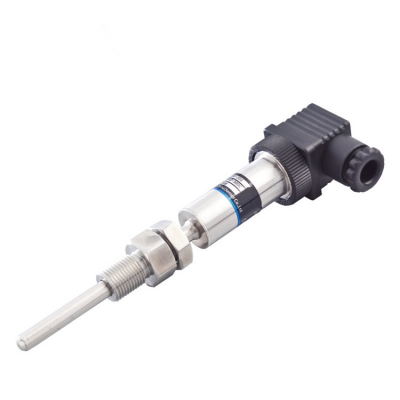

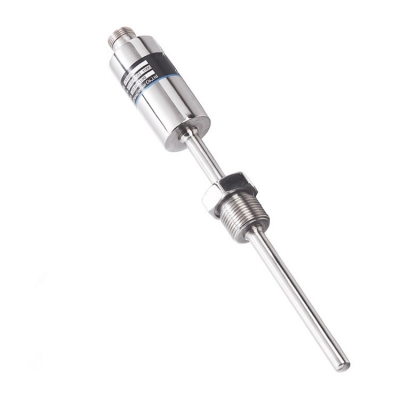

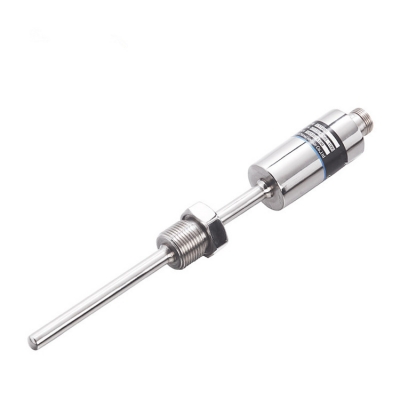

Musktool-FST600-203 Integrated Isolated Temperature Transmitter
【Product Description】
| FST600-203 Integrated Isolated Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell. The temperature transmitter is based on the sensor to increase the transmission conversion function. It adopts two-wire and three-wire signal output mode with nonlinear Calibration circuit, can directly measure the liquid and gas medium in the industrial process, easy to install, and a variety of temperature measurement ranges are optional. |
【 Features】
◇ Easy installation, multiple temperature measurement ranges available. ◇ High efficiency lightning protection, strong anti-RF and electromagnetic interference protection. ◇ Fast response speed and high accuracy. ◇ Good long-term stability, low energy consumption and small size. ◇ Dual use for gas and liquid, any medium compatible with 304 stainless steel. |
【Technical Parameters】
Signal output 4~20mA、0~5VDC、0~10VDC Signal Line Specifications 2Wire（4~20mA），3Wire（0~5VDC 、0~10VDC） Supply voltage 9~30VDC（4~20mA、0~5VDC），15~30VDC（0~10VDC） Accuracy ±0.5%FS Storage temperature -40~+125℃ Pressure resistance Typical (40bar) Long-term stability (1 year) ≤±0.1%FS/year Shell material 304 stainless steel Temperature measuring element PT100、PT1000 Protection class IP65 Response time T=50℃ 2.3s Range -50~400℃ Media Compatibility Various media compatible with 304 stainless steel Mounting thread M20X1.5, G1/4, NPT1/4 or customized upon request Electrical connections Direct outlet, aviation plug, Hessman or customized as required
Applications:
● Pipe and ventilation systems ● Hydraulic and pneumatic systems
● Cooling and heating systems ● Air-conditioning systems
● Automation system control ● Water supply and water heating systems
【Electrical interface and wiring method】
