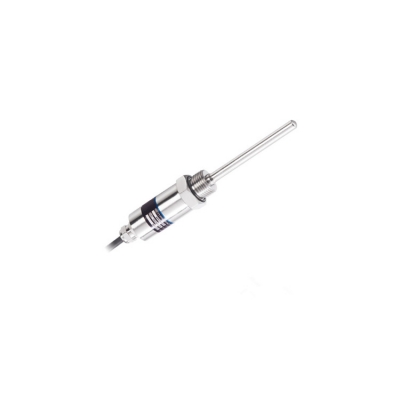

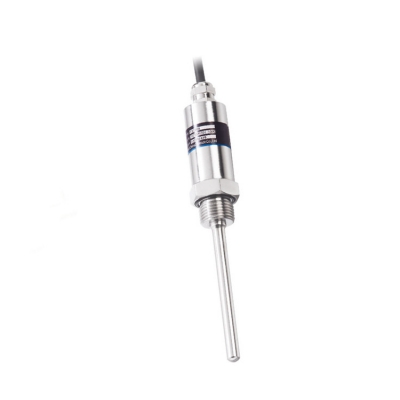

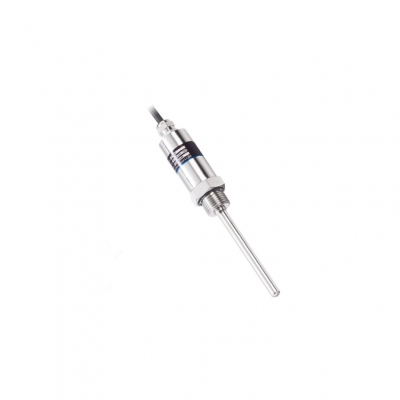

Musktool-FST600-202 Integrated Temperature Transmitter
【Product Description】
| FST600-202 Integrated Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell. The temperature transmitter is based on the sensor with a transmission conversion function. It adopts two-wire and three-wire signal output mode with nonlinear correction. The circuit can directly measure the liquid and gas medium in the industrial process, the installation is simple, and a variety of temperature measurement ranges are optional. |
【Technical Parameters】
Testing range -50~120°C Note: If the temperature exceeds 120°C, isolation is required Signal Output 4~20mA 0~5VDC 0~10VDC Precision ±0.5%FS Signal Line Specification 2Wire (4~20mA), 3Wire (0~5VDC, 0~10VDC) Supply Voltage 9~30VDC (4~20mA, 0~5VDC), 15~30VDC (0~10VDC) Operating temperature -40~+85°C Storage Temperature -40~+125°C Long-term stability ≤±0.1%FS/year Temperature measuring element PT100, PT1000 Response Time T=50°C 2.3s;T=90°C 5.4s Withstand voltage Typical (40bar) Shell material 304L stainless steel Media compatibility Various media compatible with 304 stainless steel Mounting thread M20X1.5, G1/4, NPT1/4 or customized Electrical connections Direct outlet, Aviation plug, Hirschmann or customized Environmental Protection IP65
【Features】
◇Simple installation, multiple temperature measurement ranges are optional. ◇Efficient lightning protection, strong anti-radio frequency and electromagnetic interference protection. ◇Fast response and high accuracy. ◇ Good long-term stability, low energy consumption and small size. ◇ Gas-liquid dual-purpose, any medium compatible with 304 stainless steel. |
【Detailed description】
