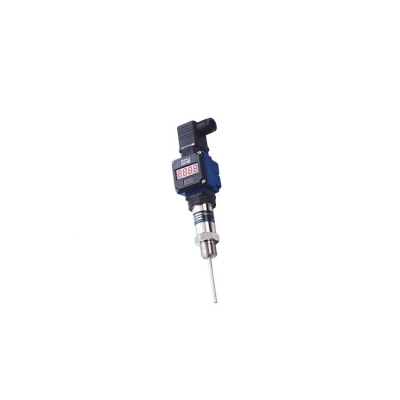

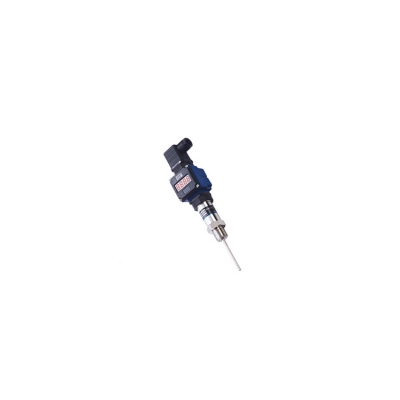

Musktool-FST600-204 Digital Display Temperature Transmitter
【Product Description】
| FST600-204 2 Wire 4-20ma Digital Display Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell. The temperature transmitter is based on the sensor with a transmission conversion function, and adopts two or three-wire signal output mode. , with a nonlinear correction circuit, can directly measure liquid and gas media in industrial processes, easy to install, and a variety of temperature measurement ranges are optional |
Features
◇ Easy installation, multiple temperature measurement ranges available. ◇ High efficiency lightning protection, strong anti-RF and electromagnetic interference protection. ◇ Fast response speed and high accuracy. ◇ Good long-term stability, low energy consumption and small size. ◇ Dual use for gas and liquid, any medium compatible with 304 stainless steel. |
【Technical Parameters】
Range -50~400℃ Note: When the temperature exceeds 120℃, isolation is required Output signal 4~20mA,0~10VDC Accuracy ±0.5%FS Signal line specifications 2Wire Power supply 15~30VDC Operating temperature -40℃~+85℃ Storage temperature -40℃~+125℃ Long-term stability ≤±0.1%FS/year Temperature measuring element PT100, PT1000 Response time T=50℃ 2.3s; T=90℃ 5.4s Pressure resistance Typical (40bar) Casing material 304 stainless steel Media compatibility Various media compatible with 304 stainless steel Mounting thread M20X1.5, G1/4, NPT1/4 or customized as required Electrical connection Hissman band display Protection level IP65
