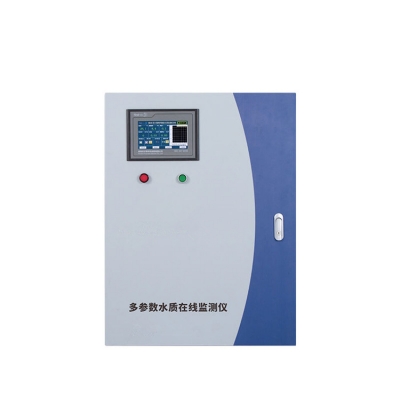

Musktool-FST100-SZXT-01 Water Quality Monitoring Box Multi-parameter Analyzer PH Conductivity COD Dissolved Oxygen Residual Chlorine
【Product description】
| Multi-parameter water quality online analyzer (FST100-SZXT01) can be widely used in urban or rural water plants, tap water pipeline networks, tap water secondary water supply, user tips, indoor swimming pools, large-scale water purification equipment and direct drinking water and other water quality online monitoring, It is an indispensable online analysis and testing equipment in the fields of sanitation supervision, water conservancy and water management, and water plant production process control. |
【Features】
● Integrated design, can measure a variety of water quality parameters; ● Water quality parameters: pH, residual chlorine, dissolved oxygen, conductivity, turbidity and temperature, other items to be monitored can be explained; ● Optional measurement parameters, high accuracy and good repeatability; ● Sensors can be combined arbitrarily, installation is simple and easy, and maintenance is convenient; ● No need to add reagents, no reagent consumption; ● Multiple output modes are optional (RS485 MODBUS-RTU, 4G, Ethernet port); ● It can integrate functions such as circulation defoaming, automatic cleaning, data acquisition, and remote data transmission, which reduces the difficulty and workload of system integration; |
【Scope of application】
● Water plants in cities or villages; ● Tap water pipeline network; ● Secondary water supply of tap water; ● User tip； ● Indoor swimming pool; ● Large-scale water purification equipment and direct drinking water, etc.; |
【Technical Parameters】
Project Index Value PH / ORP (optional) Measuring range 0-14pH, ±2000mV（ORP） Resolution 0.01pH, ±1mV（ORP） Precision ±0.01pH,±20mV(ORP), or±2% Repeatability ±0.1pH, ±10mV（ORP） Temperature compensation function Automatic/Manual (PH) Residual chlorine Measuring range 0-20mg/L Resolution 0.01mg/L Precision ±2% or ±10ppb Temperature compensation function Automatic / manual Temperature Measurement methods Thermistor method Range 0℃ - 100℃ Resolution 0.2℃ Precision ±0.2℃ Turbidity Measurement methods 90° light scattering method Range 0-100NTU / 0-4000NTU Resolution 0.001NTU Precision 2% or ±0.02NTU; 5% or 0.5NTU(0-4000NTU) Conductivity (optional) Range 1-2000uS/cm Precision ±1%FS Temperature compensation function Automatic / manual Dissolved oxygen (optional) Range 0-40mg/L Resolution ±0.01mg/L Precision 0.2% FS Temperature compensation function Automatic / manual Expansion port Port type RS485、4-20mA、0-5V Data communication Transfer method RS485、4G、NB-IoT System Power supply (220±22)V AC，(50±1)Hz Power 30W Cabinet size 800mm*600mm*200mm (standard version) Storage temperature 4℃~+50℃ Operating temperature 4℃~+50℃ / -25℃~+50℃ Working humidity ≤85%RH (no condensation) Inlet water flow 500～1000 mL/min Water inlet pressure < 3kg/cm³ Communication Interface RS485 Modbus RTU communication protocol + MQTT data communication protocol Show 7-inch color touch screen (optional English)
【External structure】
【Detailed description】

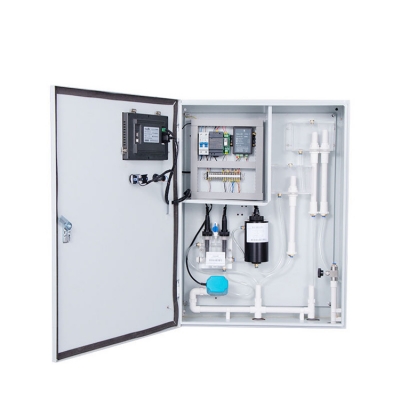

【1. Integrated design, simple and convenient installation】
【2. Multi-parameter free collocation】
【3. Large touch screen display】
【4. Cloud IoT】

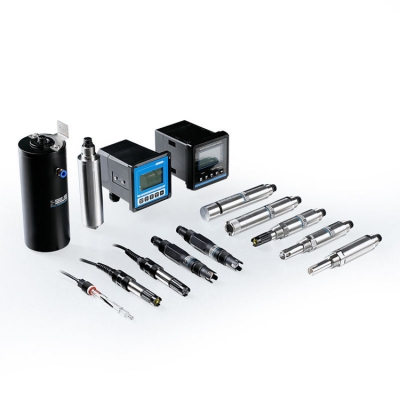

【5. A variety of parameters for you to choose】
【6. Transmission architecture】
