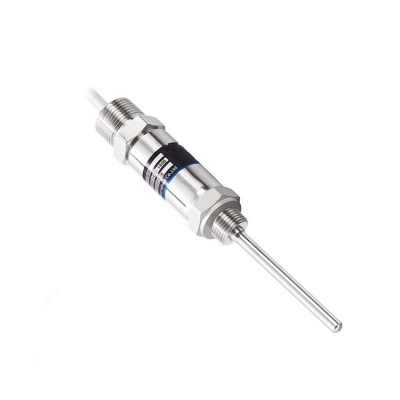

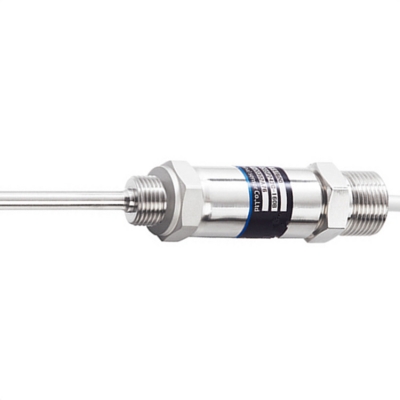

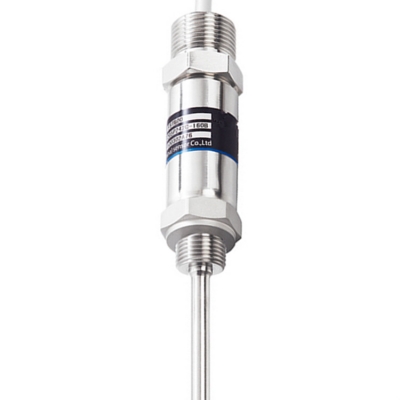

Musktool-FST600-205 Flameproof Temperature Transmitter
【Product Features】
● Flameproof and explosion-proof structure design, Exd II CT6 Gb ● Simple installation, multiple temperature ranges available ● Multiple linear analog signals available ● Fast response speed, high accuracy ● Good long-term stability, low energy consumption, small size ● Can measure any medium compatible with 304/316L stainless steel |
【Application Range】
● Explosion-proof industrial process detection and control ● Hydraulic and pneumatic control systems in explosion-proof occasions ● Petrochemical, natural gas control systems ● Other explosion-proof automation system testing and control |
Technical indicators
Reference temperature: 25°C (unless otherwise specified)
Measuring range (°C) | -200~400℃(When the temperature exceeds 120℃, isolation is required) | |||
Output signal | (4~20)mA | (0~5)VDC、(1~5)VDC | (0~10)VDC | RS232、RS485 |
Signal line specifications | 2Wire | 3Wire | 4Wire | |
Supply voltage | 9~28VDC | 15~28VDC | 9~28VDC | |
Probe size (mm) | Ф6、Ф8 | |||
Mounting method | Insertion type, insertion depth (mm): 50mm, 80mm and customized | |||
Connection method | Thread connection, G1/4, M20×1.5, G1/2 and customized | |||
Linearity | ±0.5% FS、±1% FS | |||
Long-term stability (1 year) | ±0.1%FS | |||
Response time | T=50 2.3S、T=90 5.4S | |||
Ambient temperature | (-20~+60)°C (LCD display), (-40~+60)°C (LED display) | |||
Storage temperature | -40~125°C | |||
Mechanical vibration | Peak acceleration 19.6m/s2 | |||
Media compatibility | Various media compatible with 304 stainless steel | |||
Protection level | IP67 (direct outlet type), IP65 (cable output type) | |||
Explosion-proof level | Exd IIC T6 Gb | |||
Material | 304 Stainless Steel |
