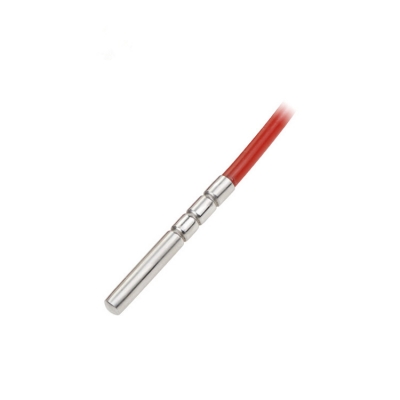

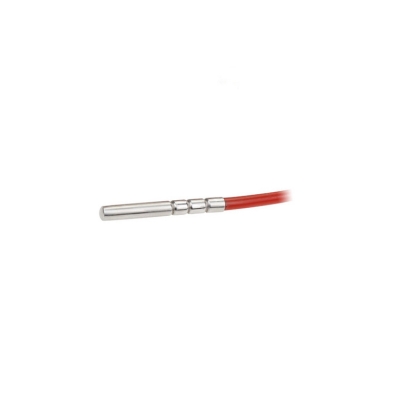

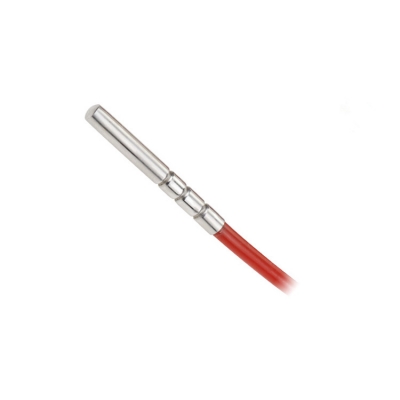

Musktool-FST600-103 Platinum Resistance Temperature Sensor
【Product Features】
| ● Easy installation, multiple temperature measurement ranges available ● Gas and liquid dual-use, any medium compatible with 304/316L ● Fast response speed, low energy consumption, small size |
【Application Range】
| ● Applicable to hydraulic and pneumatic systems, air conditioning systems, automated temperature measurement and control systems |
【Technical parameters】
Range -50~250℃ output signal Resistance signal precision A grade, B grade, 1/3B grade Signal Line Specifications 2Wire，3Wire Working current PT100：0.3~1mA PT1000：0.1~0.3mA （Self-heating effects need to be considered） Operating temperature -40℃~+125℃ Storage temperature -40℃~+125℃ long-term stability ≤±0.1%FS/year Temperature measuring element PT100、PT1000 Response time T=50℃ 2.3s；T=90℃ 5.4s withstand voltage typical（40bar） shell material 304 stainless steel media compatibility Various media compatible with 304 stainless steel Electrical connections direct line Degree of protection IP65
● Electrical interface and wiring method
