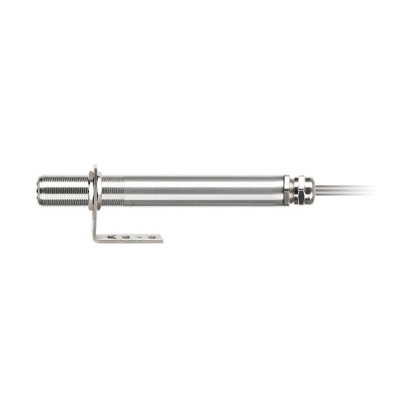

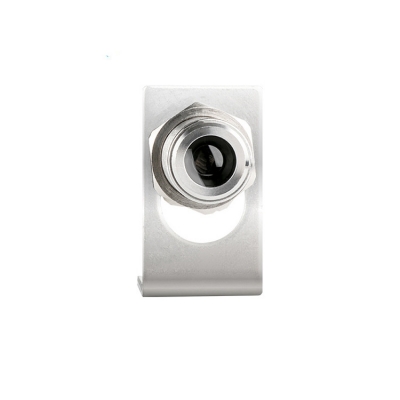

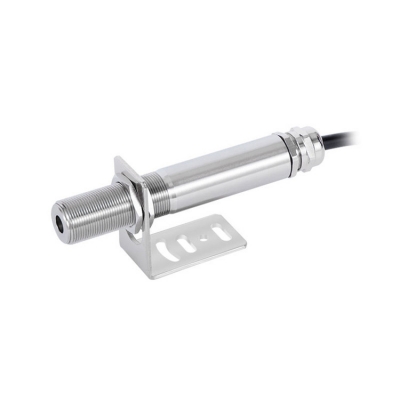

Musktool-FST600-407A Short wave Infrared Temperature Sensor
【Product description】
| FST600-407A infrared temperature sensor measures the infrared radiation energy through an infrared detector and converts it into an electrical signal, and then converts it into a temperature according to the basic law of radiation and displays the temperature signal through a display instrument. It is mainly composed of an optical system, a photodetector, a signal amplifier and Signal processing and other components. FST600-407A Infrared temperature sensors can be used to measure the temperature in areas with high or low temperature, high voltage, and high-speed machinery, and the measurer does not need to be close to these specific environments, and the product has fast response and high sensitivity. Due to the non- contact measurement, the measurement process will not change the temperature of the measured object, so the measurement results are true and reliable. Compared with the long-wave infrared temperature sensor, the short-wave infrared temperature sensor can provide the trend of temperature change more accurately, and can reduce the influence of the emissivity change of the measured object |
【Technical Parameters】
Supply voltage 24V DC Output signal 4-20mA Maximum current 50mA Spectral range 1.55um Temperature range 400-1200℃/500-1400℃/600-2000℃ Optical resolution 50：1 Response time 100ms（95%） Temperature measurement accuracy ±2% of measured value Repeatability ±1% of measured value Emissivity 0.95 fixed
【Scope of application】
Power distribution cabinets, electricity, tobacco, heating furnaces, food, rubber, paper, plastics,packaging, printing and dyeing textiles, electrical, composite materials, equipment supporting,metallurgy, petrochemical systems, various kilns, heating furnaces, railways, and packaging machinery temperature monitoring, etc. |
