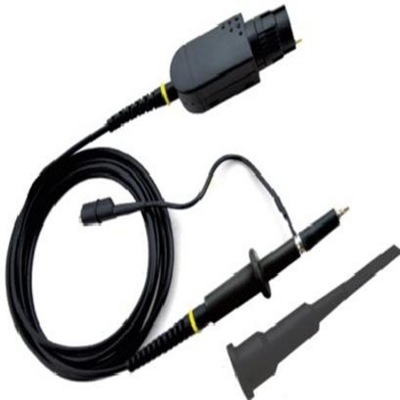

Musktool-P5100A high voltage probe P5100A500MHz 10012500V
INTRODUCTION
| In the field of high - voltage and high - frequency electronic measurement, the withstand voltage limit and high - frequency response capability of the probe are the core barriers to breaking through complex test scenarios. The P5100A high - voltage probe, with a bandwidth of 500MHz, an attenuation ratio of 100:1, and a withstand voltage performance of 2500V, has become a flagship - level equipment for high - end high - voltage signal testing. |
Technical Specification
TYPE | P5100A |
System bandwidth(-3 dB, typical) | 500 MHz |
System rise time (typical) | <700 ps |
System input capacitance | 2.5 pF |
Compensation range | 7-30 pF |
Propagation delay | ~6.1 ns |
System attenuation accuracy | 100:1±1.75% |
System input resistance (typical) | 100MQ±1% |
Cable length | 2m |
Maximum input voltage | 1000VRMS CATII,2500 Vpk |
